Ikea Akurum Base Cabinet Frame Assembly Instruction
Posted By: pdiddy;
Category: Miscellaneous;
October 27, 2008
Author Ikea;

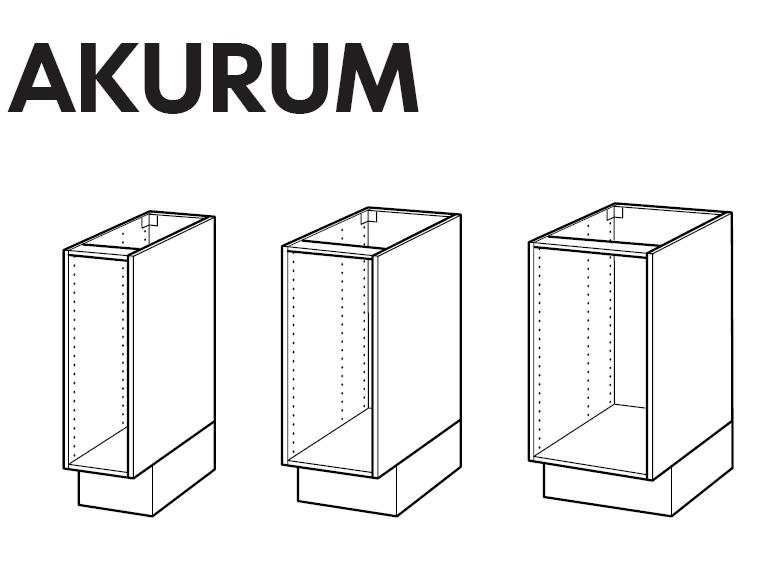

Here you will find step by step instructions on how to assemble your Ikea Akurum
Click Image To Enlarge
1
You will need the following tools.
* Screwdriver
* Hammer
* Screwdriver
* Hammer
Click Image To Enlarge
2
Lay out all boards flat. Please attach screws and hinges as shown with a screwdriver.
Click Image To Enlarge
3

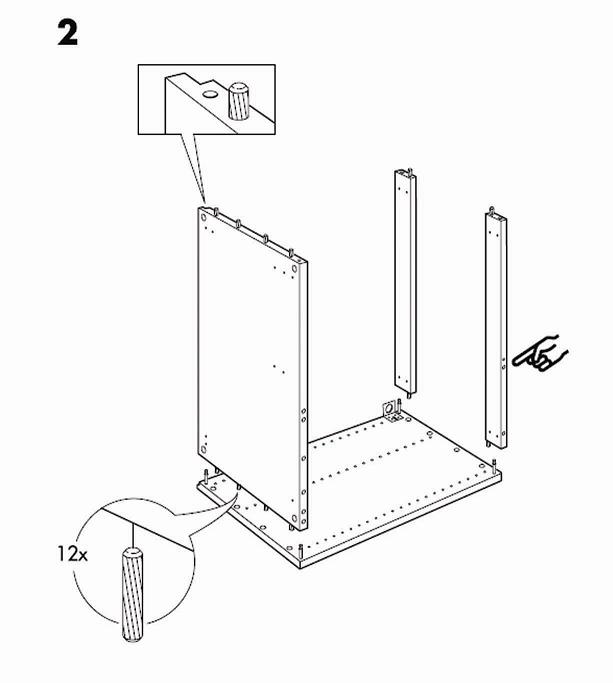

Attach wood fasteners to large support and the two small supports as shown. Attach supports (Large and 2 small) to base board via wood fasteners.
Click Image To Enlarge
4
You then will place the next wooden side board and tighten the wooden side board with the screw fasteners.
Click Image To Enlarge
5

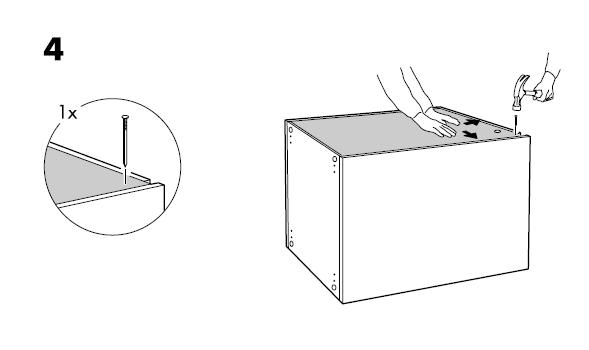

You then will want to line up the backboard to the back end of the Akurum Base cabinet. Once the back end is lined up you will then want to nail in the front end of the backboard.
Click Image To Enlarge
6

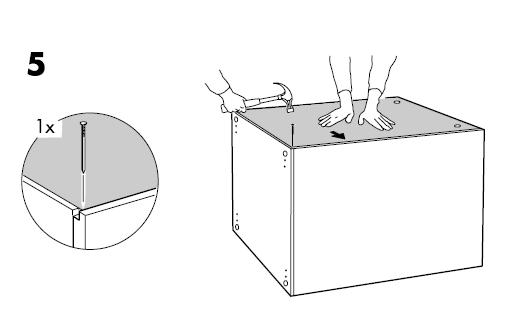

Next you will need to nail in the back end of the backboard.
Click Image To Enlarge
7

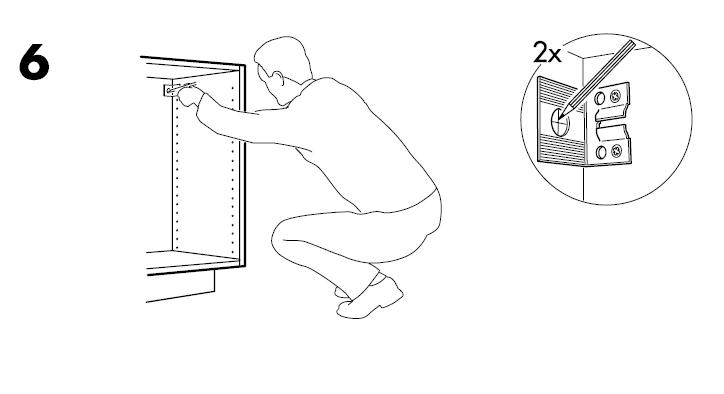

Place the inside brackets in the cabinet and use a pencil to make a set marking.
Click Image To Enlarge
8
Take the round flat head screws and screw the screws half way where the bracket markings where made by your pencil.
Click Image To Enlarge
9
You will then want to screw in the bracket hinges.
Click Image To Enlarge
10

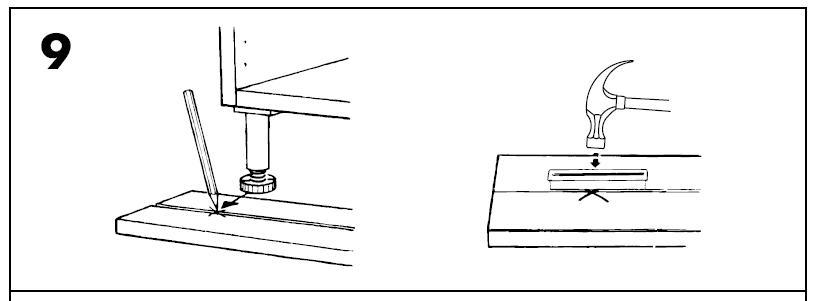

Now that the base is put together you will now add the bottom base boards. To do this you first need to mark each board to line up with the bottom legs of cabinet.
Click Image To Enlarge
11

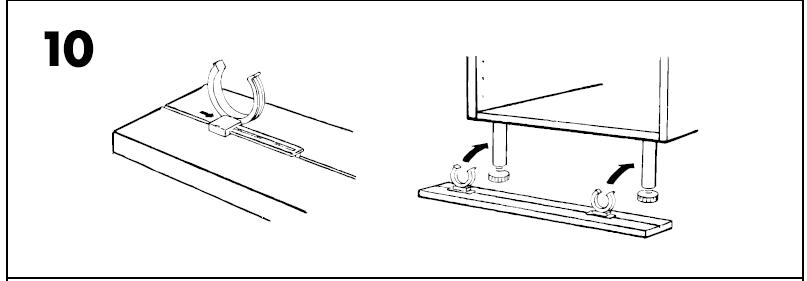

Add the bottom leg snappers to hold in the bottom boards.
Click Image To Enlarge
12

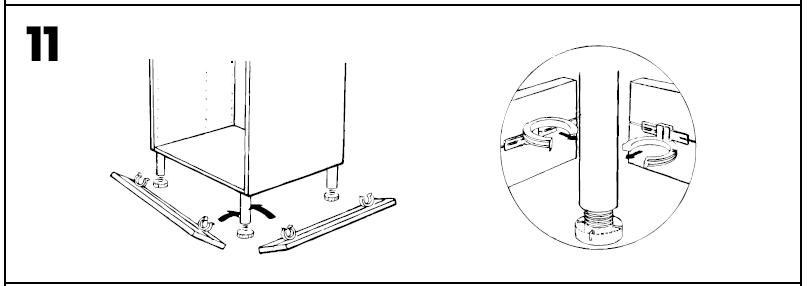

Snap in in the bottom boards to the cabinet.
Click Image To Enlarge
13
You have now finished putting together your Ikea Akurum Base Cabinet Frame.
